Stealth Hidden Trailer Hitch (SHR31028) | Fully Concealed 2" Receiver for BMW X5 (2024-2026, incl. 40i, M60i & xDrive 50e M Sport)
A fully welded, bolt-on hitch that disappears behind your bumper — no cutting, no drilling, no shin-bangers.
Tow 8,000 lbs Without Ruining Your X5's Lines
Your BMW X5 wasn't designed to wear a bulky steel bar under the bumper. The Stealth Hidden Trailer Hitch mounts completely out of sight and only shows when you need it — drop in the 2" receiver for bikes and cargo, or the "zero-play" ball mount for towing, then pull it out and your X5 looks factory again.
- ✓ Completely hidden — no visible cutouts in the bumper
- ✓ No welding or drilling — bolt-on to factory points
- ✓ Protects the vehicle's crumple zone
- ✓ Foot-activated hatch release stays active
- ✓ Integral theft-resistant lock and key
- ✓ Stainless steel latch block + powder coat for corrosion resistance
- ✓ Zero-play ball mount — eliminates the jerk and bang of square-tube receivers
Choose Your Kit
| Kit | Who It's For | Price |
|---|---|---|
| Rack Package | Bike racks, ski racks, cargo platforms. No trailer wiring needed. | $668 |
| Tow + Rack Combo | Everything above plus full towing — ball mount, wiring/controller, safety-chain anchors. | $967 |
Not sure which to pick? If you'll ever pull a trailer, choose the Combo — you can upgrade later, but doing it up front saves a second install.
What's Included

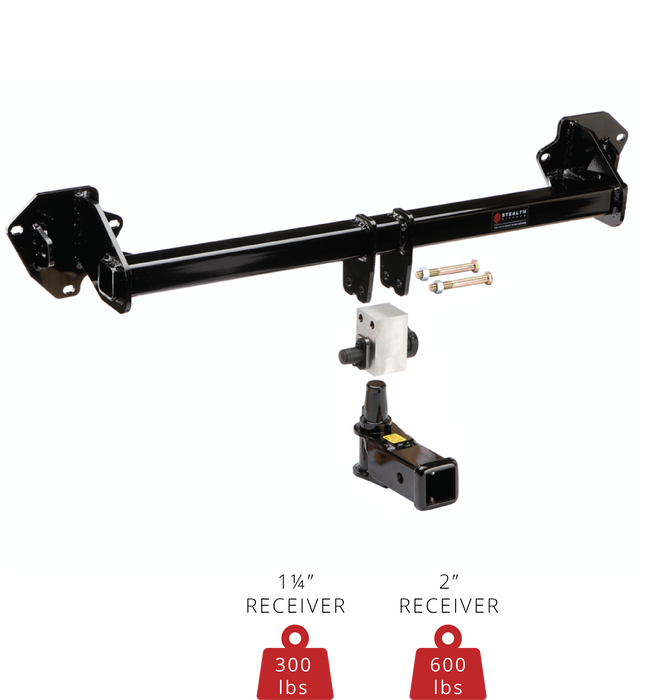

Rack Package: the fully welded hidden hitch, stainless steel latch block, and a detachable 2" rack receiver that accepts standard bike racks, ski racks, and cargo platforms. Integral lock and key included.
Tow + Rack Combo adds: Stealth wiring harness & controller, 7-way bracket, 7-way to 4-way adapter, "zero-play" ball mount, 2" ball, safety-chain anchors, hardware, and programming cable.
The Stealth harness/controller draws current directly from the battery rather than tapping the tail-light circuits — which is what prevents the electrical faults European vehicles are prone to when spliced into.
Technical Specifications
| Hitch part number | SHR31028 |
| Conversion kit (Combo) | SHT25015 |
| Gross trailer weight (GTW) | 8,000 lbs |
| Tongue weight (TW) | 800 lbs |
| 2" receiver capacity | 600 lbs |
| 1-1/4" receiver capacity | 300 lbs |
| Construction | Fully welded, stainless steel latch block, powder coat finish |
| Origin & warranty | Made in the USA · Lifetime Guarantee |
Do not exceed the weight ratings of the hitch, trailer, or vehicle. Always check your trailer and vehicle manufacturer's ratings — your X5's factory tow rating is the ultimate limit.
Fitment
2024-2026 BMW X5 — sDrive/xDrive 40i & M Sport, M60i, and xDrive 50e & M Sport (PHEV).
Driving a 2019-2023 X5 (40i, M50i, xDrive 45e, xDrive 50i) or an X6? Those use the earlier SHR31028 application — message us and we'll point you to the right listing.
Not sure which X5 you have? Send us your VIN at support@evbandit.com and we'll confirm the exact fit before you order.
Why Owners Choose Stealth
- ✓ Completely hidden — nothing hanging below the bumper
- ✓ No knee or shin bangers
- ✓ No permanent attachments under the vehicle
- ✓ Preserves the factory look and resale value
- ✓ Great for bikes, extra cargo, skis and more
- ✓ Made in the USA and backed by a Lifetime Guarantee
Installation & Documents
Installation Instructions (PDF)
Operating Instructions (PDF)
Rather not do it yourself? EV Bandit installs hidden hitches at our Los Angeles-area shop or mobile at your home or office. See our installation services or call/text (310) 626-3118.
Shipping
FREE U.S. shipping. Made to order — contact us for current lead times.
⚠️ WARNING (California Prop 65): This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information, go to www.p65warnings.ca.gov.
Questions about fitment, wiring, or installation? Email support@evbandit.com.
