Stealth Hidden Trailer Hitch (SHR40004) | Fully Concealed 2" Receiver for Land Rover Range Rover (2022-2027)
THE HITCH MADE TO BE HIDDEN | MADE IN USA | LIFETIME WARRANTY
Custom engineered for the current generation Range Rover. Completely concealed behind the bumper, visible only when you want it to be.
Tow 8,000 lbs Without Ruining Your Range Rover's Lines
The Stealth Hidden Trailer Hitch (SHR40004) mounts entirely behind your bumper, so your Range Rover keeps its factory look. Drop in the detachable ball mount to tow, swap to the 2" receiver to run a bike rack or cargo carrier, and remove both for a completely invisible finish when you're done. No tools required. Everything latches into a stainless steel block and locks in seconds. No welding, no drilling, no visible cutouts.
✓ Fully hidden design, no visible cross tube or bumper cutouts
✓ Tows up to 8,000 lbs (GTW) / 800 lbs tongue weight
✓ Detachable 2" square rack receiver for bike racks & cargo carriers
✓ Tool free, lockable ball mount with integral lock
✓ Stainless steel latch block + powder coat finish for corrosion resistance
✓ Made in the USA, backed by a limited lifetime warranty
Choose Your Kit
Both options install the same hidden hitch beam (SHR40004) and the same stainless steel latch block. The difference is whether you want towing capability now or just rack carrying. You can always upgrade to tow later with the conversion kit.
| Kit | Who It's For | Price |
|---|---|---|
| Rack Package | Bike racks, ski racks & cargo platforms only, not for towing. No wiring harness needed. | $685.99 |
| Tow + Rack Combo | Full towing. Adds the detachable ball mount, 7 way connector and Stealth wiring harness (kit SHT25072). Does everything the Rack Package does. | $1,034.99 |
Not sure which to pick? If you only carry bikes or cargo, the Rack Package is all you need. You can convert to tow later with kit SHT25072, so nothing is wasted either way.
What's Included

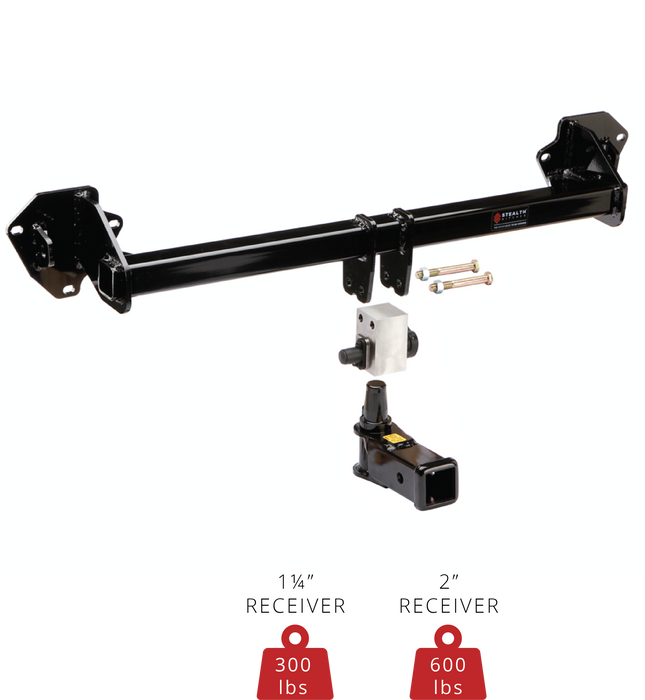

Rack Package: hitch beam (bolt up design), stainless steel latching mechanism w/ integral lock, detachable 2" square rack receiver

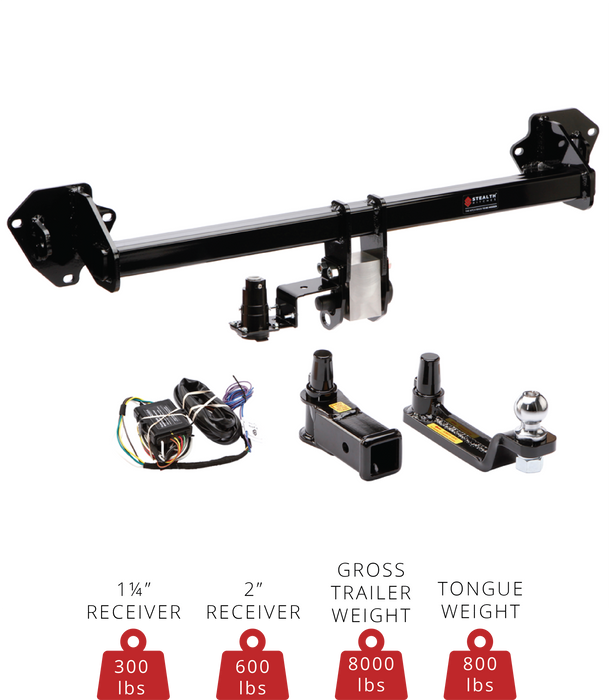

Tow + Rack Combo adds: detachable ball mount, 2" ball, 7 way connector, Stealth wiring harness, and chain anchors for safety chain connection
Why a Detachable Ball Mount Rides Better
The Combo Package uses a detachable ball mount that works differently from a typical square tube receiver. When inserted into the stainless steel receiver block it creates a tight connection to the vehicle frame, eliminating the jerking and banging you get from square tube hitches during starts and stops. Less wear on the drivetrain, and a smoother ride for everyone in the car.
Stealth Wiring Harness
The Stealth harness and controller monitor and duplicate the tail light functions rather than drawing current from the tail light circuits, which can throw vehicle faults on European platforms like the Range Rover. The controller draws directly from the battery to avoid that entirely.
Technical Specifications
| Part number | SHR40004 |
| Gross trailer weight (GTW) | 8,000 lbs |
| Tongue weight (TW) | 800 lbs |
| Rack receiver capacity | See the rack ratings chart in the product gallery |
| Towing conversion kit | SHT25072 (upgrade a Rack Package to tow later) |
| Construction | Fully welded beam, stainless steel latch block, powder coat finish |
| Origin / Warranty | Made in USA / Limited lifetime |
Do not exceed the weight ratings of the hitch, trailer, or vehicle. See trailer and vehicle manufacturer information for ratings.
Fitment
Land Rover Range Rover (2022 to 2027)
Not compatible with Gen4, Evoque, or Range Rover Sport.
Driving a 2013 to 2022 Range Rover or Range Rover Sport? Those use a different beam (SHR40002). Not sure which generation you have? Send your VIN and we'll verify before you order.
Why Owners Choose Stealth
✓ Completely hidden when not in use, your Range Rover looks factory
✓ No visible cutouts in the bumper
✓ No welding or drilling required
✓ Protects the vehicle's crumple zone design
✓ No permanent attachments hanging under the vehicle, no knee or shin bangers
✓ Integral theft resistant lock and key
Installation & Documents
No welding or drilling required. The hidden hitch bolts up behind the bumper while maintaining your Range Rover's ground clearance. Owners typically report a multi hour install; we strongly recommend professional installation for correct alignment and finish.
Installation instructions: contact us at support@evbandit.com and we will send the current PDF for your build. (Stealth's site currently serves the previous generation SHR40002 document on this listing, so we verify it by VIN rather than link it here.)
EV Bandit installs in house at our Los Angeles shop. See our installation services, or we'll help you find a certified installer near you.
